LJXH DN40 1.5″ BSP Water Heating Element for Brewery and Distilling Machine with Ground Screw and Probe 220V 380V
$92.99 – $124.99Price range: $92.99 through $124.99

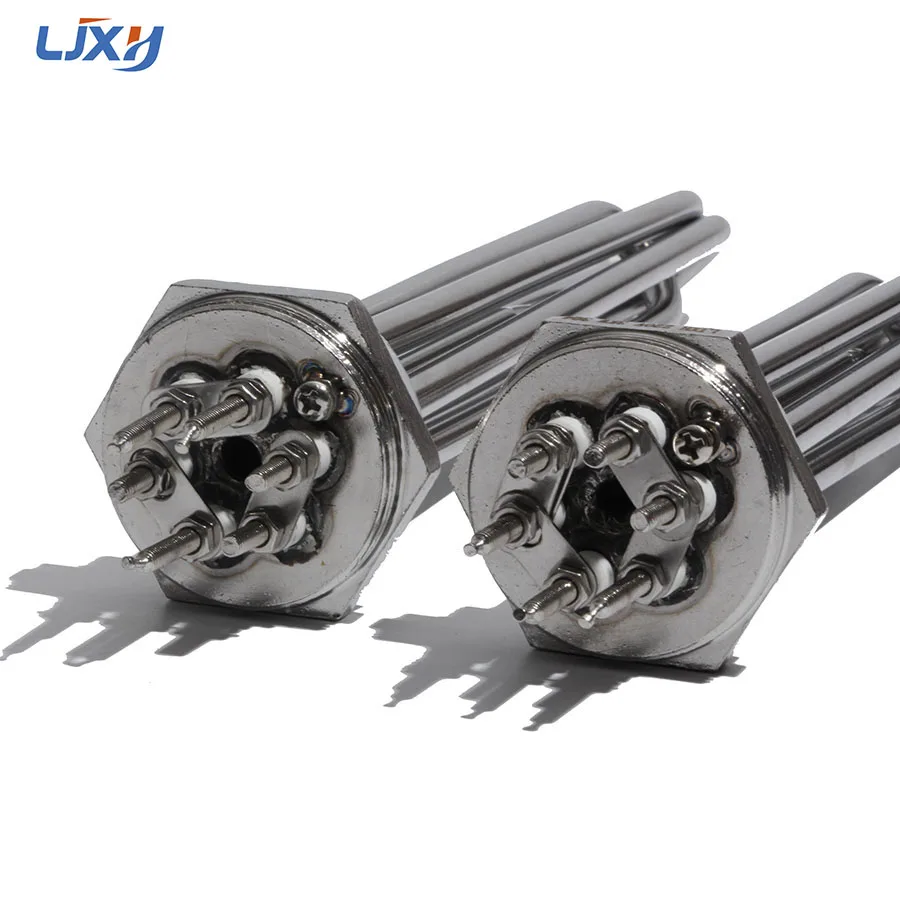

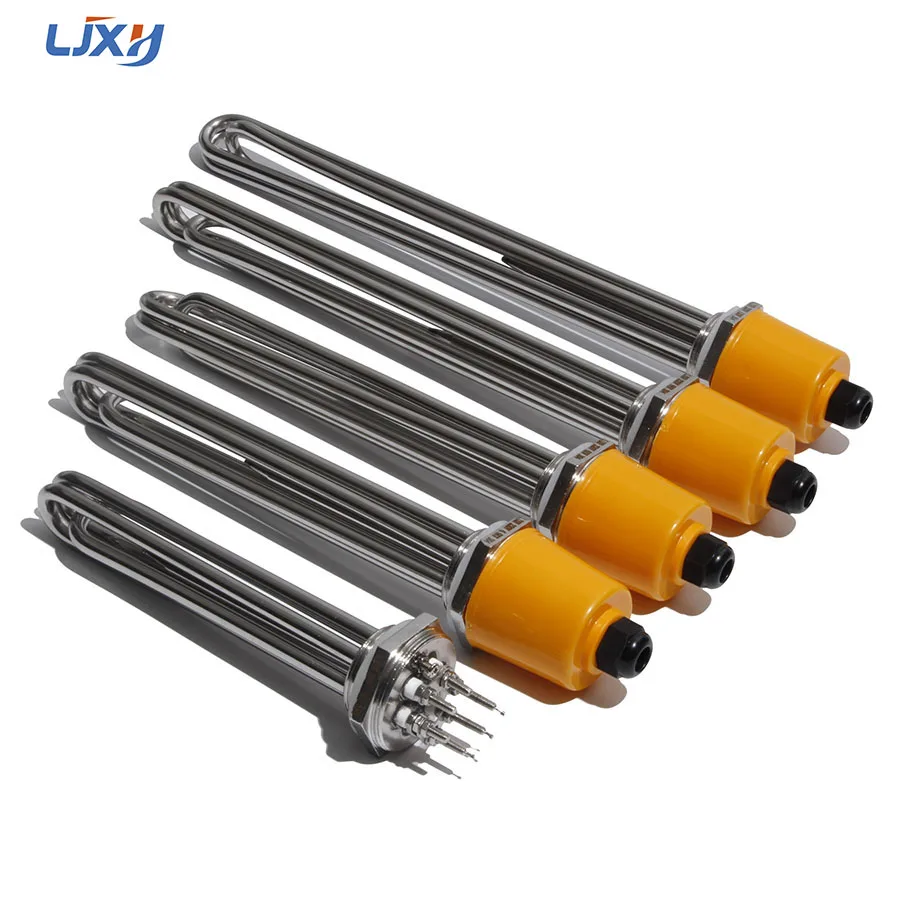

LJXH DN40 1.5″ BSP Thread Water Heating Element for Brewery and Distilling Machine with Ground Screw and Probe 220V 380V
Product Name: Water Heater Element

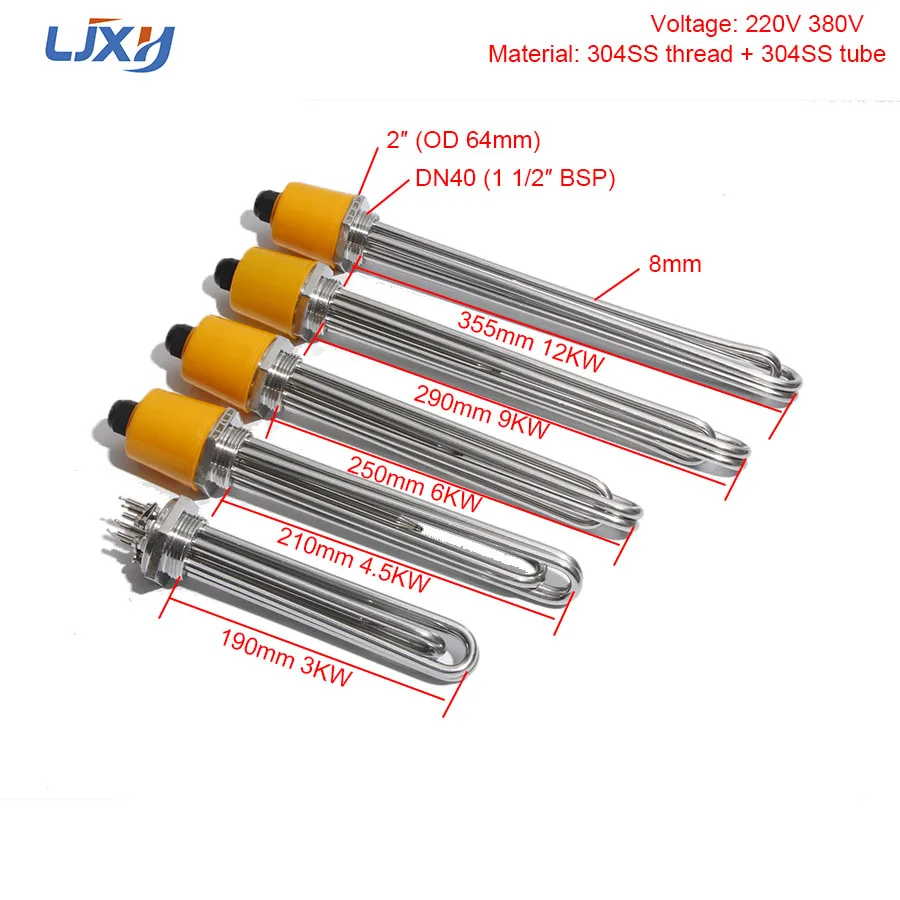

Tube Length: 190mm/210mm/250mm/290mm/355mm
Tube Diameter: 8mm
Thread Diameter: DN40/1.5inch
Tri-clamp: 2inch (OD 64mmm)
With Grounding srew: Yes

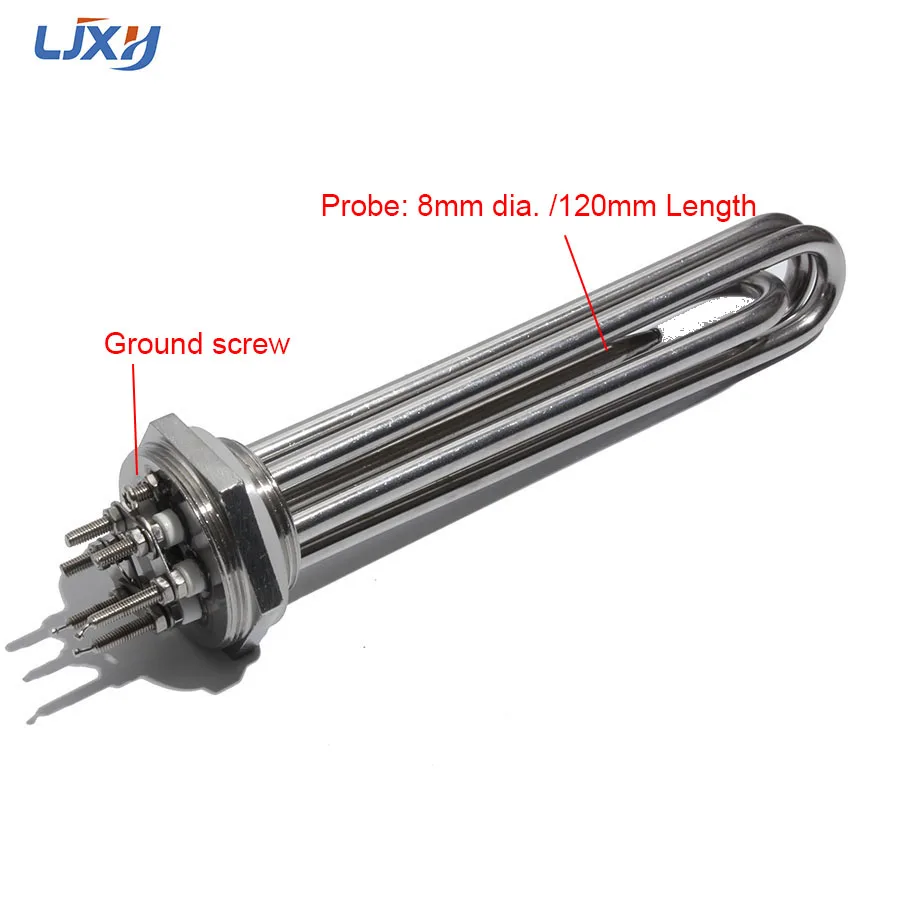

With Probe for sensor: Yes (8mm diameter and 120mm length)

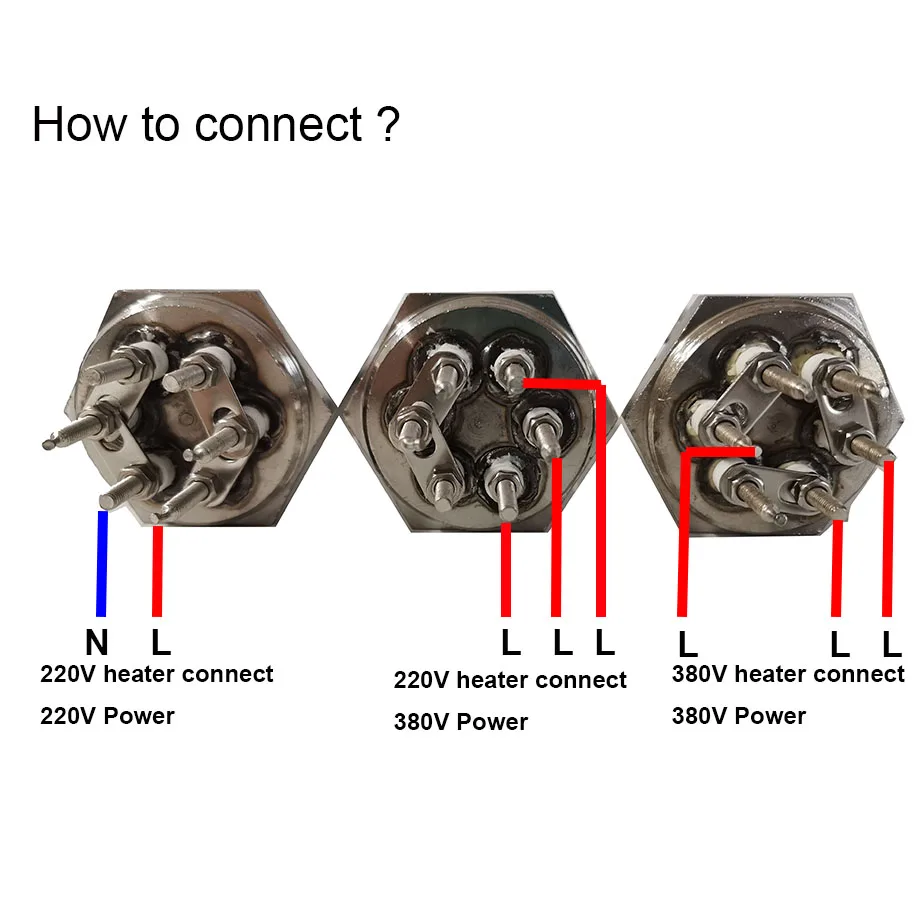

Voltage: 220V/380V
Power: 3KW/4.5KW/6KW/9KW/12KW
Tube Material: 304 stainless steel
Thread Material: 304 stainless steel
Package Contents: 1x heater/1x silicone gasket/1xcap/1x PG11 connector
To dear all,
1. Heaters are industrial products, not vase. some may have flaws, such as weld, such as stainless steel trace and polish trace. that’s normal.
2. Because the heating wire inside the heater tube is made of OCr25A15 which is Magnetic, it is normal that the element can be adsorbed by magnet.
3. Under the condition of insulation, the international standard for the heater power accept allowance -10% to 5%.
If you are care about these, please think twice before make order. We do not accept dispute or negative feedback about these.
Thank you for your attention.
| Weight | 1.000 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
| Brand Name | LJXH |
| Origin | Mainland China |
| Type | Electric Water Heater Parts |
| Product Name | Heating Element |
| Material | All 304SUS |
| Tube Length | 190mm/210mm/250mm/290mm/355mm |
| Voltage | 220V/380V |
| Wattage | 3000W/4500W/6000W/9000W/12KW |
| Accepted Custom | Yes |
| Application | solar water tankless/Boiler/Air Tank |
| Function | Electric Heating Element for heating boilers |
| Thread Size | DN40/1.5inch |
| With Probe for sensor | YES (8mm diameter and 120mm length) |
| tri-clamp | 2inch (OD 64mm) |
