Lujinxun DN40 1.5

DN40 1.5″ BSP Water Heating Element for Brewery and Distilling Machine with Ground Screw and Probe 220V 380V

Specifications:
Product Name: Water Heater Element

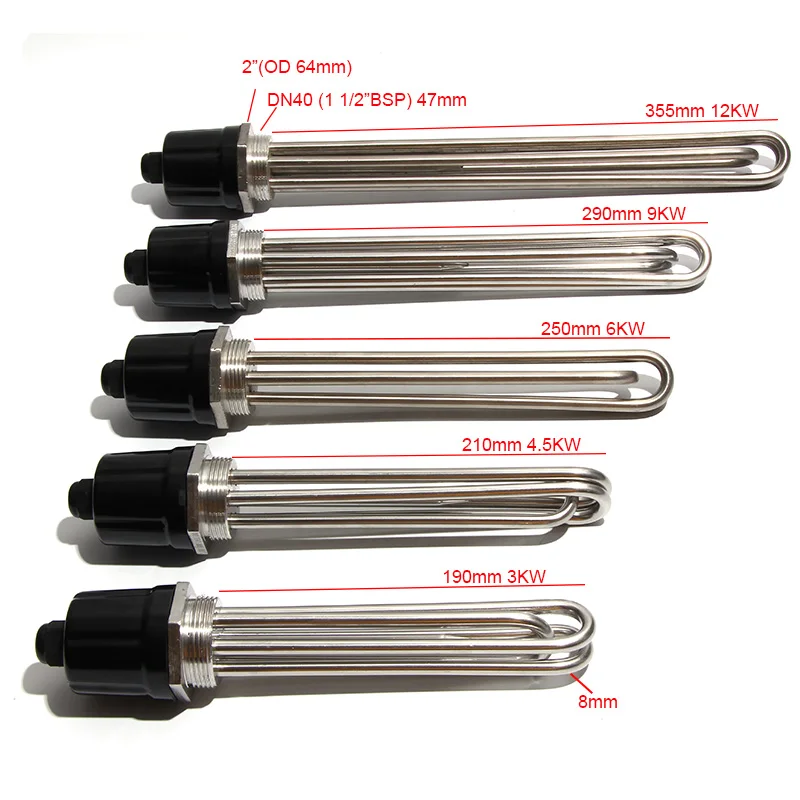

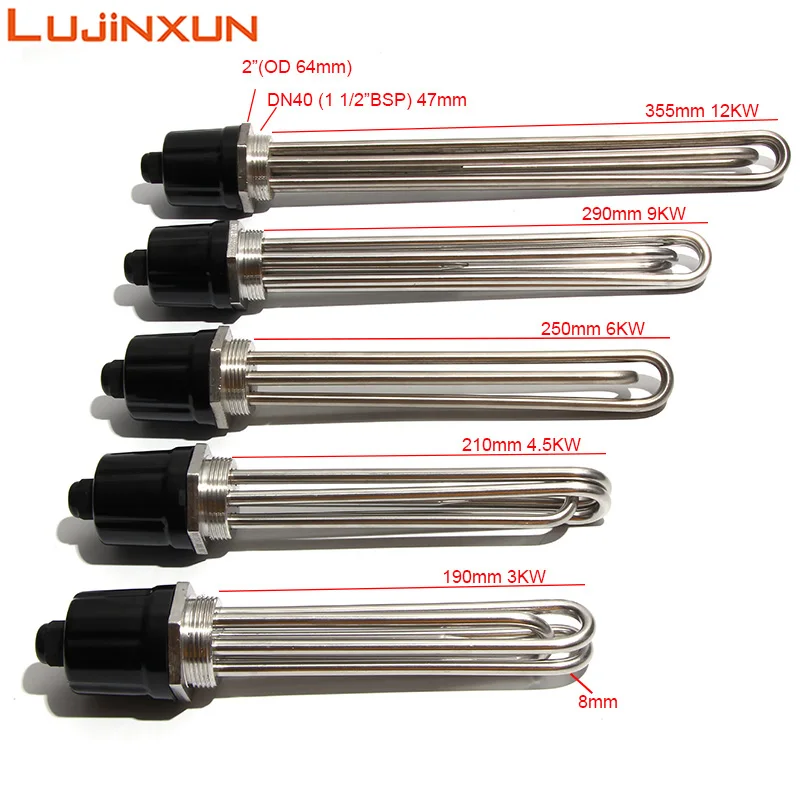

Tube Length: 195mm/230mm/250mm/295mm/355mm
Tube Diameter: 8mm
Thread DIameter: DN40 (47mm/1.5inch)
Voltage: 220V/380V
Power: 3KW/4.5KW/6KW/9KW/12KW
Tube Material: 304 stainless steel
Thread Material: 304 stainless steel

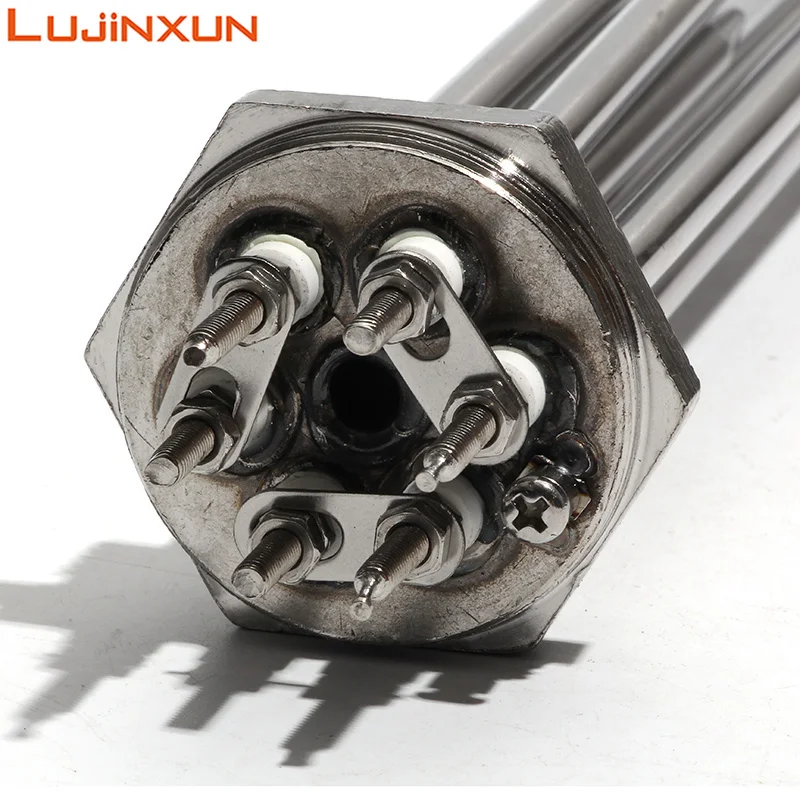

With Grounding srew: Yes

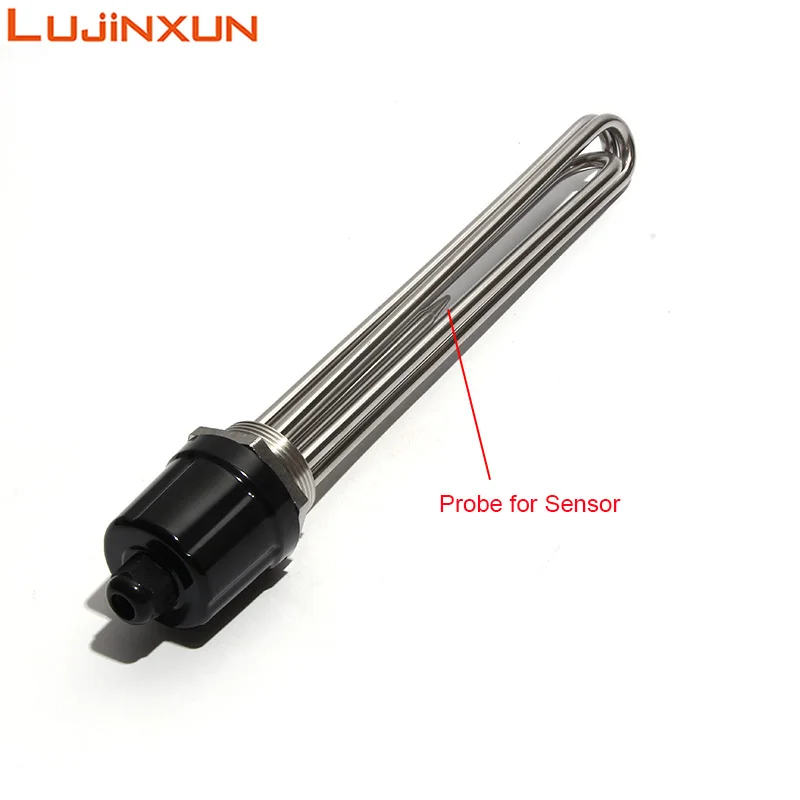

With Probe for sensor: Yes (8mm diameter and 120mm length)

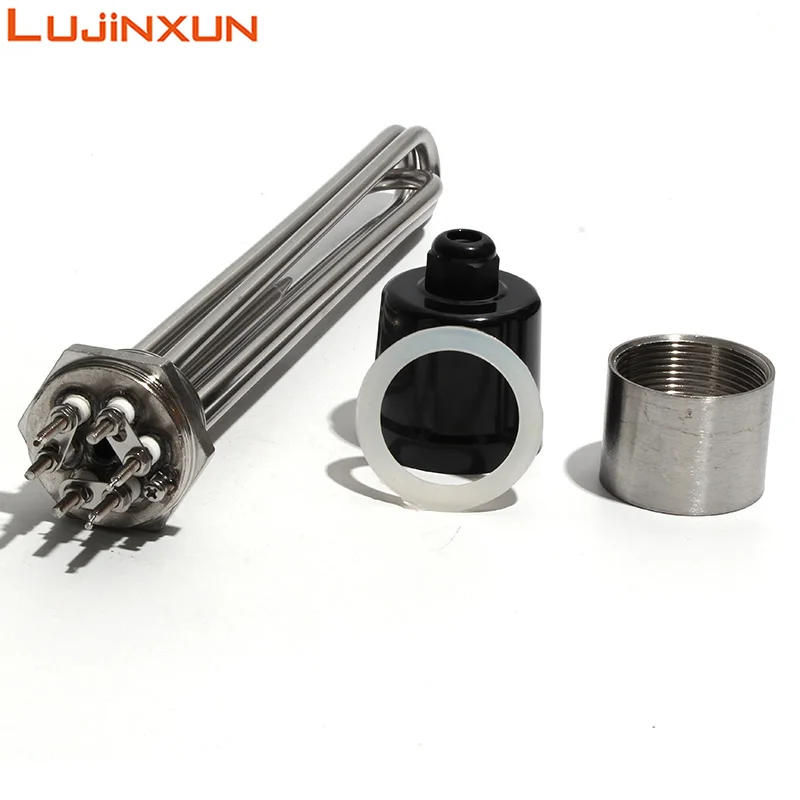

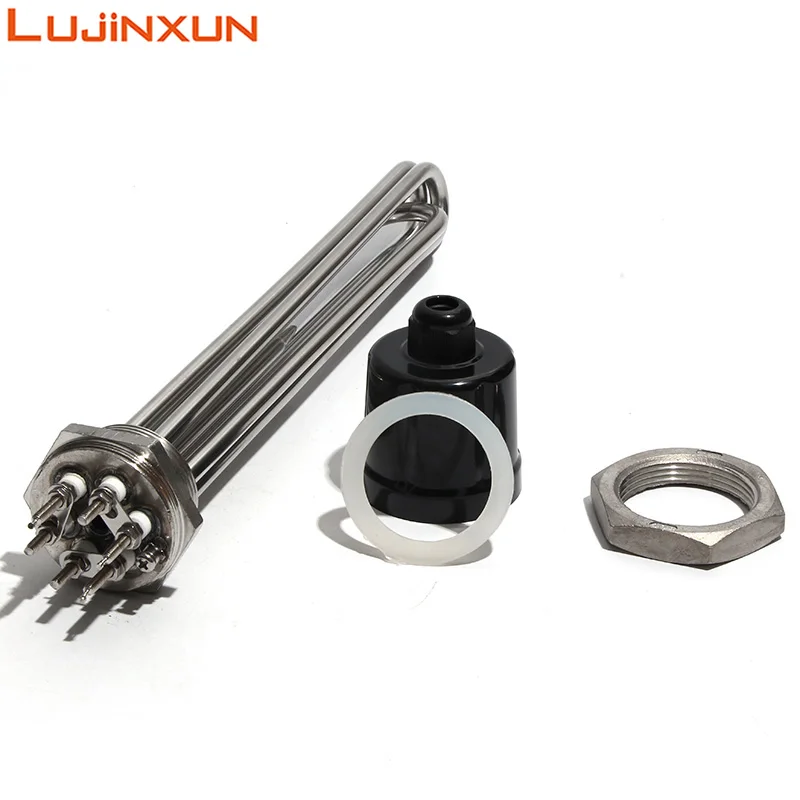

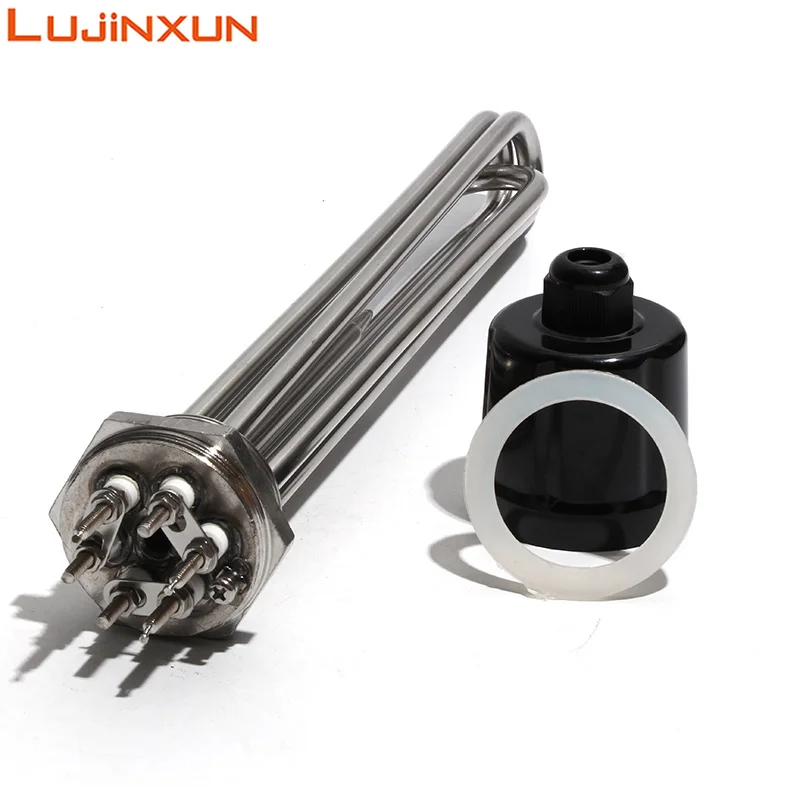

Package Contents: 1x heater/1x silicone gasket/1xcap/1x PG11 connector

Pay attention: Power Allowance -10%~+5%

01/Notices:The heaters for water/oil,cannot dry burning,heating in oil keep under 300 degree.

02/Features: SUS304 thickened tube,High temperature resistance wire and high temperature insulation powder.

03/Application:Suitable for Heat-conducting oil stove, large water tank, boiler, reaction kettle.

To dear all,

1. Heaters are industrial products, not vase. some may have flaws, such as weld, such as stainless steel trace and polish trace,that’s normal.

2. Because the heating wire inside the heater tube is made of OCr25A15 which is Magnetic, it is normal that the element can be adsorbed by magnet.

3. Under the condition of insulation, the international standard for the heater power accept allowance -10% to 5%.

If you are care about these, please think twice before make order. We do not accept dispute or negative feedback about these.

Thank you for your attention.

Custom Made

We accept for different heaters.if you need custom,please offer drawing,also actual picture will be more helpful.

ln order to improve efficiency,please offer drawing with the following parameter,thanks.

①Thread Size example: DN25/DN32/DN40/DN50 ect.

②Tube Length example: 190mm/210mm/250mm ect.

③Tube Diameter example: 8mm/10mm/12mm ect.

④Power example: 3KW/4.5KW/6KW ect.

⑤Voltage example: 220V/380v ect.

⑥Tube Material example: suS201/SUS304/Copper ect.

⑦Thread Material example: suS201/SUS304/Copper ect.

Instructions for use

1. Before installation please use multimeter to measure the power. Ifthere is no problem after measured,then can be installed. If there is nopower, please contact with us.

2. How to measure the power: Please note: Under the condition of insulation,the International standard for the heater power accept allowance -10%~+5%,the heater size accept allowance 0.5mm,Ifyou care about it, please do not makeorder. Thanks:)
